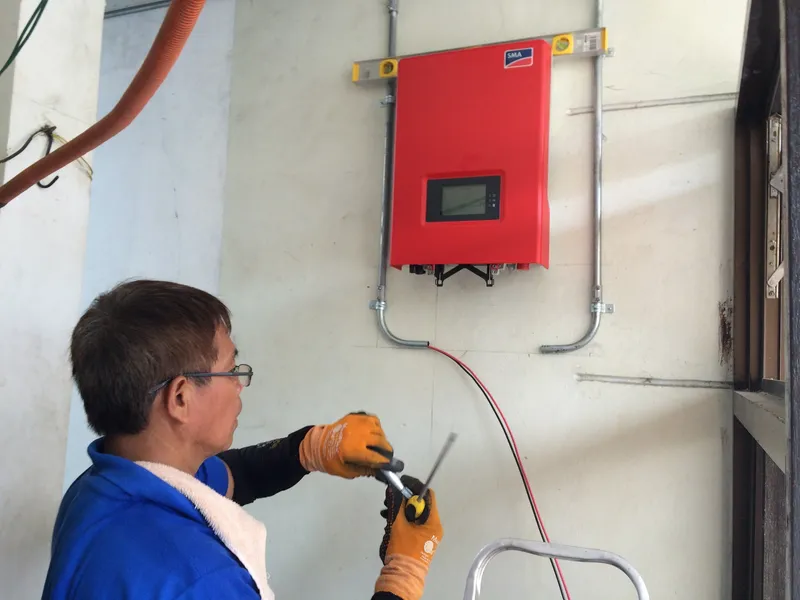

Solar inverters are the bridge between your panels and the power grid. They handle the critical job of converting direct current into grid-compatible alternating current.
This guide explains how inverters synchronize with the grid, the different types available, and how to choose the right one for your setup.
What Is a Solar Inverter?
Home solar systems are growing as a legitimate residential energy solution. Most systems use photovoltaic modules that convert sunlight into electrical energy as DC (direct current).
To make this work for your home, you need photovoltaic modules, wiring, and a device that feeds the generated power into your home’s electrical panel. That device is called an inverter.
Solar panels generate DC electricity where the output is a continuous voltage source. The output only changes based on the solar cell formation and sunlight conditions.
This is different from alternating current (AC), which is used in most electrical power systems. Your home’s outlets, appliances, and the utility grid all run on AC.
Why Is a Solar Inverter Important?
Solar panels produce direct current power. DC electricity is generated by electrons moving in one direction from negative to positive.
It’s mainly used in battery applications, like a flashlight, and works well over small distances.
Most household appliances and devices run on alternating current. AC electricity is generated by electrons moving back and forth between terminals, creating a sine wave.
The benefit of AC is that voltage can be modified, making it easier to transmit over longer distances.
Since solar panels only produce DC, an inverter converts it into usable AC for your house. Without one, your panels would be useless for powering anything in your home.
Types of Inverters
Inverters convert DC into AC electricity in steps to create various waveforms.
A basic inverter generates a square wave with limited voltage. These are only good for running small devices and bulbs, like a coffee maker.
More advanced inverters use additional steps to create a modified sine wave. These work for devices, televisions, and lights, and handle significant energy surges.
They may cause issues with sensitive electronics though, and they create harmonic distortion that produces background hum in audio devices.
The most advanced inverters create a true or near-true sine wave. They’re the type most commonly found in residential PV systems.
As more delicate electronics like computers were added to homes, these became the standard.
In off-grid applications, DC electricity is stored in batteries. An inverter converts the battery voltage into usable AC power.
It must be large enough to power all appliances running simultaneously and handle power surges from washers, dishwashers, and dryers.
Grid-tied inverters supply power to the home and feed excess energy into the grid. They include detection devices that shut them down when a grid outage is detected or when utility workers need to service the lines.
An inverter is necessary if any or all of your power comes from solar panels. Most inverters work at 90 to 95% efficiency, and advances in inverter technology are happening all the time.
What Are Grid-Tied Inverters?
Grid-tied inverters are the critical element in a grid-tied renewable power system. They’re most widely used in photovoltaic systems.
The term “grid-tied” means your house is still connected to the local electricity grid. Grid-tied inverters convert DC from your panels into the same kind of AC that the electrical company supplies.
Grid-Tied Without Batteries
The first approach is a grid-tied inverter without batteries. When properly configured, it lets you use solar energy without rewiring or adding battery storage.
The inverter converts solar power into usable AC. When the sun isn’t shining, your inverter pulls power from the grid.
If you produce more than you use, excess energy can be sold back through net metering.
These inverters automatically shut down when they don’t detect the grid. This protects utility workers from electrical surges while they repair downed lines.
Grid-Tied With Batteries
The second approach uses a grid-tied PV system with batteries. These inverters can charge batteries while working with the grid.
If you use the grid with a battery system, the inverter charges the batteries while collectively powering the house from the grid. With batteries in your system, you have backup power during outages.
Having a solar storage battery gives you an extra layer of energy security that a batteryless system can’t provide.
How Do Grid-Tie Inverters Work?
A grid-tie inverter works by monitoring the output of the solar panels it’s connected to and adjusting its feed into the grid.
The most common method is to slightly increase the load on the panel and measure the received power. If the measurement improves, the load is increased.
If it decreases, the load is reduced. The output oscillates around the maximum power point by a small amount.
The second process takes this energy and matches it to the waveform of the grid’s alternating current. This allows current to flow into the grid, making the power output equal to what the panel generates minus conversion losses.
The inverter also monitors grid frequency and voltage. It makes its natural output frequency slightly higher than the usual grid frequency.
If the grid goes offline, the inverter detects this and shuts down. Then it watches for returning voltage and correct frequency before restarting.
Inside even basic inverters, a microprocessor runs a dedicated application handling all of this. Higher-quality models usually have a data port that transmits status and output information to an internet-connected monitoring system.
How to Choose an Off-Grid Inverter
In recent years, going “off-grid” has gained popularity for two reasons: concerns about catastrophes that could shut down the electrical grid, and the push for environmentally sound energy systems.
With improvements in photovoltaic technology, leaving the electric grid behind has never been more accessible. But before you cover your roof with panels, you need to choose the right inverter to convert solar power into usable electricity.
Inverters “invert” DC to AC, while frequency converters “convert” one AC frequency to another. Most homes use AC, so choosing the right inverter should be a top priority when setting up an independent power system.
When searching for the right product, consider these factors:
- How it’ll be managed
- The electrical standards of your building
- Power range
- Power output quality
- Power efficiency
Make sure to choose a “solar inverter” built specifically for photovoltaic use. The DC input voltage should match your building’s electrical system and battery storage setup.
Three ratings establish power capacity: a constant rating (wattage for indefinite operation), a limited-time rating (higher wattage for brief periods), and a surge rating (overload wattage for starting motors and devices).
If your home’s demands exceed what a single inverter can handle, inverters can be stacked to boost performance.
Solar Power Lights
Solar power systems can generate much of the electricity you use daily. Solar power lights are a great alternative energy option for homeowners.
With these systems, the sun supplements or replaces standard lighting. Solar lights were first introduced for outdoor uses like pathway and garden lighting.
In these systems, the solar panel, battery, and lighting components are all in one unit. The light charges its internal battery with sunlight during the day and provides illumination all night.
These early versions worked well and have improved dramatically. The biggest changes are in batteries and LED technology.
Batteries now charge faster and hold their charge longer, allowing solar lights to run for more than one night on a full charge.
Frequently Asked Questions
What does it mean when a solar inverter synchronizes with the grid?
Synchronization means the inverter matches its AC output to the grid’s exact voltage, frequency, and phase. This allows smooth, uninterrupted power flow between your solar system and the utility grid.
Without proper synchronization, the inverter can’t feed excess energy back to the grid or draw power when your panels aren’t producing enough.
Can a grid-tied inverter work during a power outage?
Standard grid-tied inverters shut down during outages. This anti-islanding protection exists to keep utility workers safe from unexpected electrical surges while repairing lines.
If you want power during outages, you’ll need a hybrid inverter paired with battery storage that can disconnect from the grid and operate independently.
How does net metering work with a grid-tied inverter?
When your panels produce more electricity than you use, the grid-tied inverter sends the surplus to the utility grid. Your meter runs backward, earning you credits.
When your panels aren’t producing enough, you draw from the grid using those credits. The net difference determines your actual electricity bill each month.
What’s the difference between a string inverter and a micro-inverter?
A string inverter connects to multiple panels in series and converts their combined DC output to AC at one central point. A micro-inverter attaches to each individual panel and converts DC to AC right at the source.
Micro-inverters optimize each panel independently, so shading on one panel doesn’t reduce the entire system’s output.
Final Thoughts
Grid-tied inverters are the key component that lets your solar panels work with the electrical grid. They handle synchronization, safety shutdowns, and power optimization automatically.
Choosing between grid-tied, off-grid, or hybrid setups depends on your energy goals and budget. Understanding how solar power is generated from panel to outlet helps you make the right call for your home.
